Single Disc Wafer Check Valve Casting Body Alloy Steel Butterfly Valve

Stainless Steel Single Disc Wafer Check Valve Casting Body Butterfly Valve

A Butterfly valve is a quarter-turn rotational motion valve, that is used to stop, regulate, and start flow. A butterfly valve has a disc which is mounted on a rotating shaft. When the butterfly valve is fully closed, the disk completely blocks the line. When the butterfly valve is fully opened, the disc is at a right angle to the flow of gas or liquid.'

Ningbo Suijin can supply different types of cast stainless steel valve components including butterfly valve disc. Our stainless steel valve body disc casting part resists rust and corrosion, is more resilient than other cast alloy. Our valve component casting can meet customers' various application needs. Stainless steel casting is a perfect solution of butterfly valves as well as other valve types for corrosive applications.

Description:

Process flow:

Wax Injection--Make Wax pattern and repair--Inspection--Shell Making--De-waxing--Roasting Shell and Melting Steel--Composition Inspection--Pouring--De shelling--Cutting and Grinding the pouring gate--Inspection--Heat treatment--Shotblasting--Machining--Anti-Corrosion--Final Inspection--Shipping

Precision Casting Part Packing

Our Company

We manufactured all kinds of lost wax investment castings and machining parts or called precision investment castings , material including carbon steel, alloy steel, and stainless steel. we also can according to the customers' requirement to compound the material, Our factory has a floor space of 33,000 square meters and another 18000 square meters of building area, which contain both casting foundries and CNC machining area. Our advanced lost wax casting and investment casting production lines have a capacity of 5000 tons lost wax castings and 1000 tons investment castings per year.

Competitive Advantage:

1 . All of our products are strictly inspected and tested before packing in factory..

2 . Good team for quality and delivery time control.

3 . Close to Ningbo Port and Shanghai Port.

4 . We have a team of professional engineers to supply related technology help if customers need our tech-assistant.

5. Good Projects and PPAP documents experience

6: Full APQP process to control the quality

Our Precision Casting Manufacturing Process

FAQ

Q1: Are you are the trade company or manufacturer?

We are a professional manufacturer with over 16years experience in investment casting, and we our main market is Europe.

Q2: which port is valid for sea shipping?

We are located in Ningbo, China, which is near by Ningbo port, and there is only 1 hour from Ningbo to Shanghai Port.

Q3: Do you have internal instruction casting defects inspection equipment?

Yes, we have, we have X-ray, magnetic detection equipment, dye penetration inspection and so on

Q4. What is the range of the weight you have casted?

The weight range is from 0.02kg to 10kg.

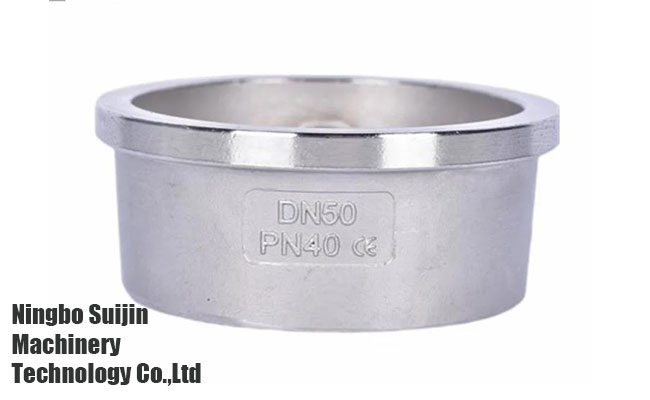

Wafer Check Valve Casting Body

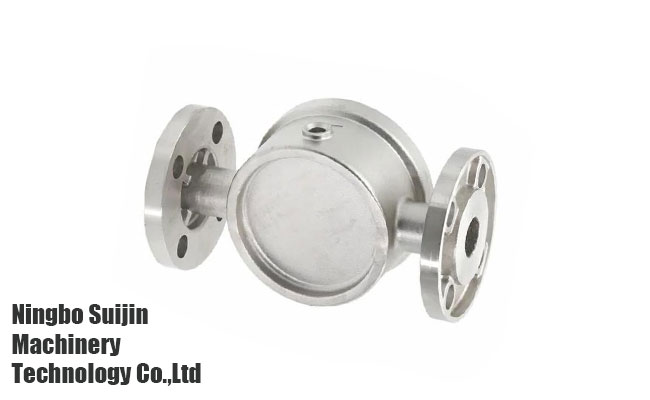

Alloy Steel Butterfly Valve Casting

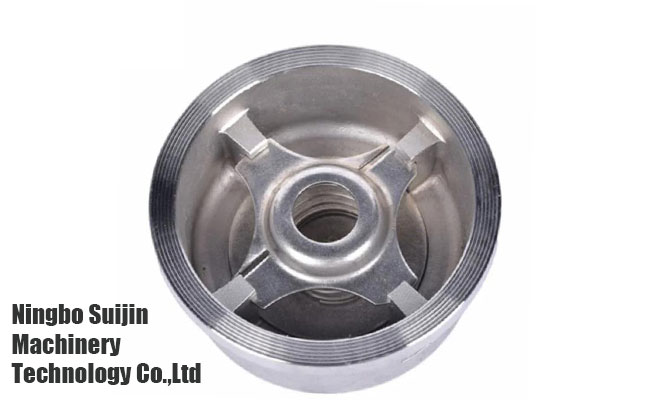

Single Disc Wafer Check Valve

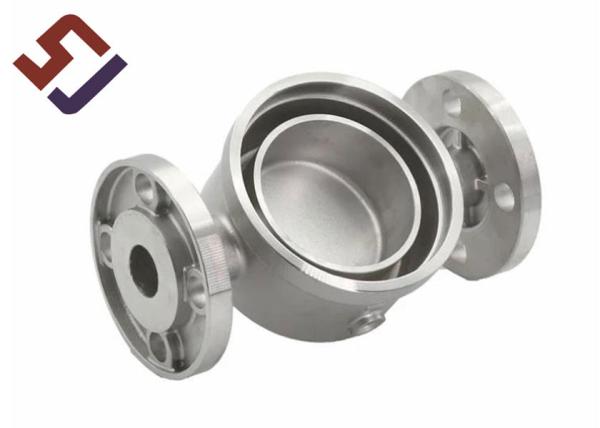

Single Disc Wafer Check Valve Casting Body Alloy Steel Butterfly Valve Images
